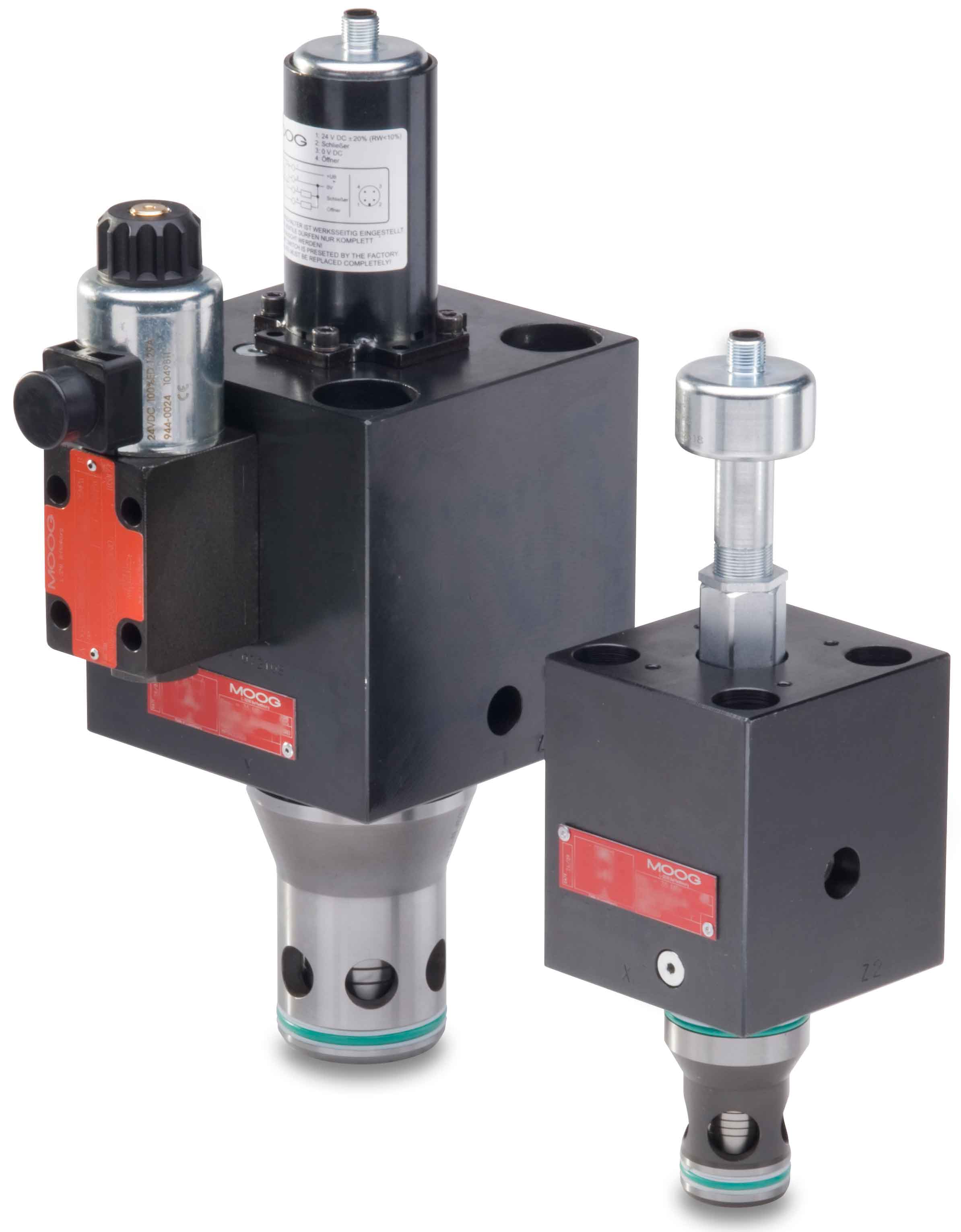

MOOG RSE serie patronventiler - Monitored and actively operated - 2-veis - Slip-in - Sete

MOOG patron- og servo patronventiler
  • Position monitored active cartridge for manifold mounting
  • The main valve compises a sleeve and seated cone with integrated pushing rod and contactless position switch, enclosed in a valve body
  • The seated cone can be controlled by an integrated pilot valve mounted on the cover or externally controlled via ports X and Y, reducing opening and closing time significantly
  • The contactless position switch gives the open signal when the seated cone is raised from the seat but the cylindrical overlap of the cone is yet open to ports A and B.
  • The position switch is mechanically shielded by a protective sleeve


Kontakt Hydex vedrørende MOOG RSE serie patronventiler

Type     2-way Slip-in Cartridge Valves
Design Seated Valve
Size NB16-NB100
Mounting type Manifold mounting
Cavity ISO 7368
Max operating pressure
Flow direction A → B (B → A)
Hydraulic fluid Mineral oil based hydraulic fluids
HFA, HFB, HFC, HFD hydraulic fluids
Recommended viscosity range 2,8...380 mm²/s (cSt)
Hydraulic fluid temperature -20°C to +80°C
Cleanliness class (recommended) ISO 4406 20/18/15
Typical applications Metal Forming and Presses
Plastic Injection Molding
Steel Production Machinery
Mobile Applications
Marine / Offshore
