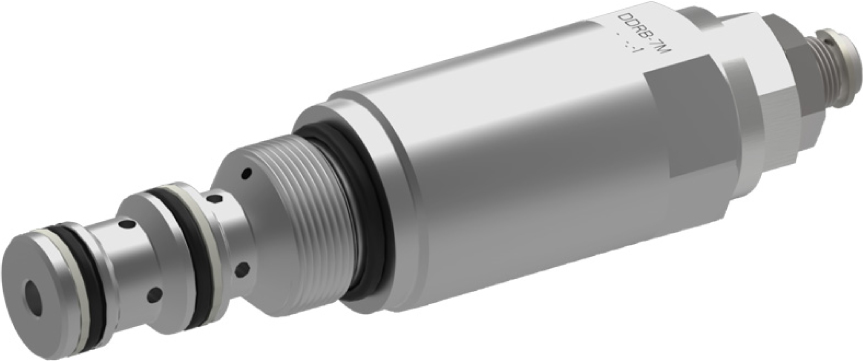

Bucher Hydraulics DDRB-7M... serie size 2...4 trykkreduksjonsventiler - Patron

Bucher Hydraulics trykkventiler
  • Compact construction for cavity type
  • AM – 3/4-16 UNF to Bucher standards
  • 5 pressure ranges available <br> Full-flow secondary pressure relief
  • Excellent stability over the whole pressure and flow range
  • Available with hand-knob
  • All exposed parts with zinc-nickel plating
  • Can be fitted in a line-mounting body

Kontakt Hydex vedrørende Bucher Hydraulics DDRB-7M... serie size 4 trykkreduksjonsventiler

Type      3−Way Pressure−Reducing Cartridge, Size 2...4
Designation 3−way pressure−reducing cartridge
Design Spool-type design, direct acting, with manual adjustment
Mounting method Screw−in cartridge 3/4-16 UNF
Size Nominal size 2…4, cavity type AM
Cavity type thread
Max operating pressure 250 bar
Max flow rate 20 l/min
Flow direction See symbols
Hydraulic fluid HL and HLP mineral oil to DIN 51 524; for other fluids, please contact BUCHER
Hydraulic fluid
temperature range
−25°C ... + 80 °C
Viscosity range 10...650 mm²/s (cSt), recommended 15...250mm2/s (cSt)
Minimum fluid cleanliness 20/18/14 to ISO 4406: 1999
