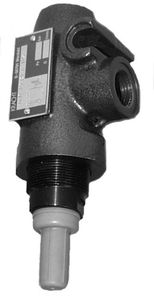

Kracht DBD 10 size 10 trykkbegrensningsventiler - Direktestyrt

Kracht trykkventiler
  • Directly-operated poppet valve for installation in the pipelines or as a clamp-in valve
  • Used to safeguard the pressure of hydraulic systems up to pmax = 400 bar
  • For line installation, the housing has two connections with Whitworth pipe threads
  • Without housingthe valve cartridge can alternatively be screwed into the specified bore contour in any body desired
        Kracht DBD 10 size 10 trykkbegrensningsventiler - Direktestyrt
Kontakt Hydex vedrørende Kracht DBD 10 size 10 trykkbegrensningsventiler

Type      Pressure relief valve, Size 10
Design Poppet type, directly-operated
Mounting method Cartridge type
Inline type
Connection KP 1 (DBD 10)
Connection G ½
Size Nominal size 10 (acc. to VDI 3276)
Max operating pressure 400 bar
Max flow rate 80 l/min
Hydraulic fluid Hydraulic oils acc. to DIN 51 524/25 (other fluids on request)
Hydraulic fluid
temperature range
−15°C ... + 80°C
Viscosity range 10...600 mm²/s (cSt)
Filtration  ≤ 20 μm
For mer informasjon Datablad  --- Oversikt

Kontakt Hydex vedrørende Kracht DBD 10 size 10 trykkbegrensningsventiler
