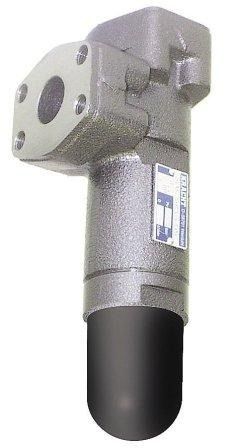

Direct spring sliding piston valve For mounting in pipelines and suitable to safeguard low pressure hydraulic circuits up to pmax bar 20 (30) bars The pipe connection is to be effected either by SAE-mounting surfaces (3000 psi) or by Whitworth pipe threads ”G“
Kontakt Hydex vedrørende Kracht SPV / SPVF size 10...80 trykkbegrensningsventiler

Type		Pressure relief valve, ATEX
Design		Sliding piston relief valve – direct operated (Seat on request)
Mounting method		In pipeline
Connection		SAE-Flange (3000 psi) Whitworth pipe thread G
Size		Nominal size 10-80 (acc. to VDI 3276)
Max operating pressure		20-30 bar
Max flow rate		40-800 l/min
Hydraulic fluid		Hydraulic oils acc. to DIN 51 524/25 (other fluids on request)
Hydraulic fluid temperature range		−20 °C ... + 80 °C
Viscosity range		6...600 mm²/s - (1500 mm²/s possible)
ATEX sertification		II 2 GD EEx c IIC (T4) or II 2 GD EEx C (T4)
For mer informasjon		Datablad --- Oversikt
