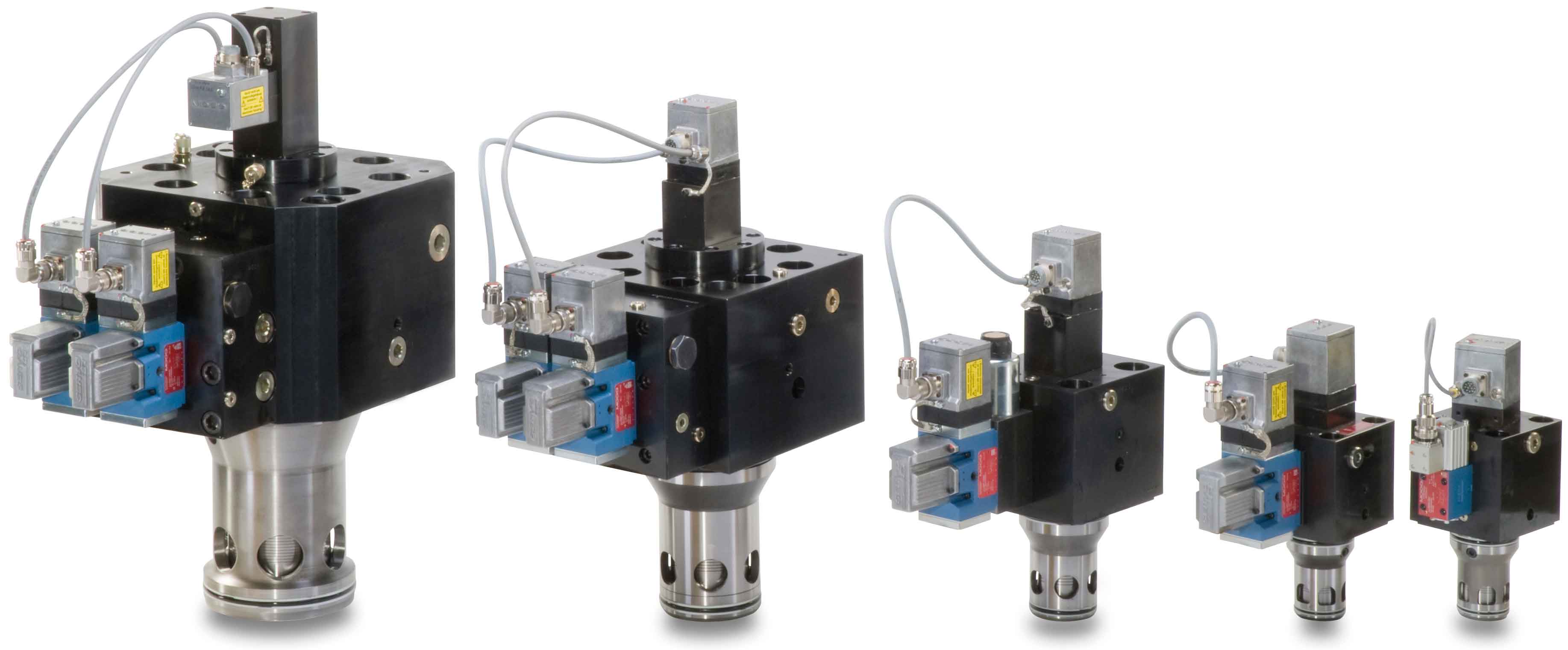

MOOG DSHR serie servo patronventiler - 2-veis - sete

MOOG patron- og servo patronventiler
  • 2-way Servo Cartridge valves
  • Throttle valves used for flow control functions
  • Main stage cone is equipped with a metallic seat for a leakage free closed position, position of the cone is controlled by a closed loop integrated onboard electronics
  • Excellent dynamic response and a superior repeatability
  • Available with different failsafe options to meet most special application requirements

Kontakt Hydex vedrørende MOOG DSHR serie patronventiler

Type    2-way Servo Cartridge Valves
Design 2/2-way cartridge seat valve with positioning control, proportionally-hydraulically operated with servo pilot valve
Size NB40-160
Mounting type Any position
Cavity ISO 7368 (sizes 125 and 160 not yet standardized)
Max operating pressure A: 350 bar
B: 420 bar
Flow direction
Rated flow 1450...20550 l/min @ Δp 5 bar
Nominal flow 850-20550 l/min @ Δp 5 bar
Hydraulic fluid
Viscosity range 5...400 mm²/s, 15...45 mm²/s recommended
Hydraulic fluid temperature -20°C to +80°C
Cleanliness class (recommended) ISO 4406: 19/16/13 - 18/15/12 (for normal operation)
ISO 4406: 17/14/11 (for longer life)
Typical applications Metal Forming and Presses
Plastic Injection Molding
Steel Production
Mobile Applications
Marine / Offshore
Die casting
For mer informasjon Klikk her ---  Katalog

Kontakt Hydex vedrørende MOOG DSHR serie patronventiler
