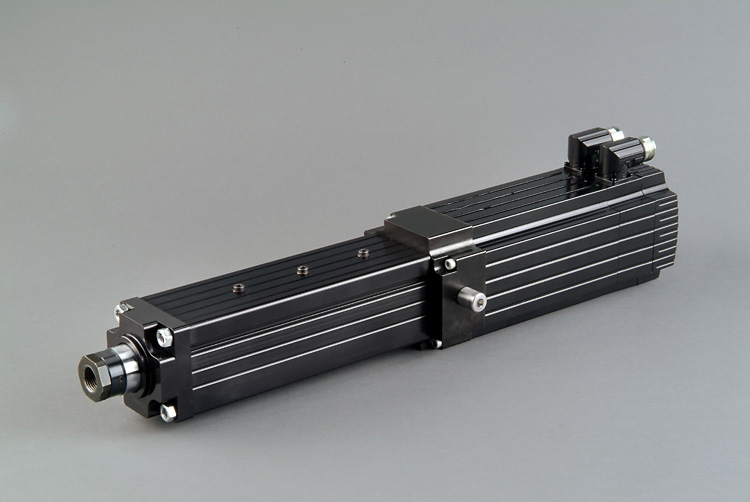

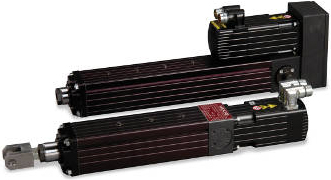

MOOG 880 serie lineær servo aktuator

MOOG lineære servo aktuatorer
  • Higher Forces, rod speeds and longer strokes
  • Custom stroke lengths available
  • Several screw-leads for speed/force variations
  • Variety of motor winding for optimum performance
  • Higher efficiency for same payload
  • Long-lasting performance and reliability
  • Inline and foldback design with internal anti-rotate

Kontakt Hydex vedrørende MOOG 880 serie lineær servo aktuator

Type    Flexible Electric Linear Servo Actuators
Design Inline, foldback
Frame size 3, 4, 5, 6
Lead lengths 5, 10, 20 mm
Continuous stall force 1.02 to 95.99 kN
Peak Stall Force 3.56 to 115.59 kN
Brake Holding Force - optional 1.25 to 140.50 kN
Maximum Speed 138 to 1,600 mm/sec
Typical applications Actuation for damper contro
Vehicle barriers
Pick and place robotic applications
Process industry valve control
Edge guide system for web control
Manufacturing press applications
For mer informasjon Klikk her ---  Katalog
