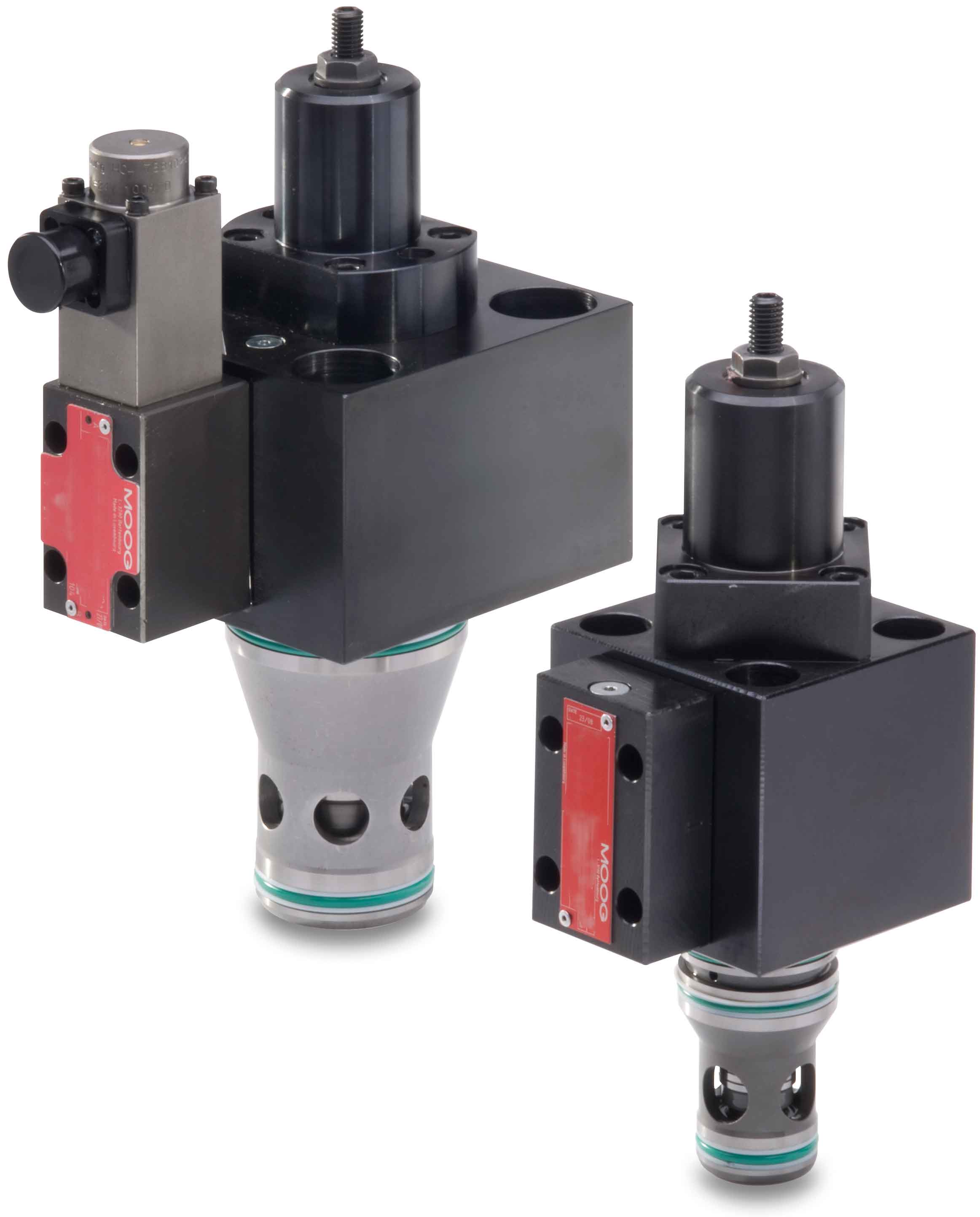

MOOG PCME serie patronventiler - 2-veis - Proporsjonal - Sete

MOOG patron- og servo patronventiler
  • 2-way Proportional Cartridge valves
  • Low pressure controlled, piloted throttle valves
  • An integrated proportional pressure reducing valve positions the pressure compensated pilot piston against a strong spring. This pilot piston is followed by the main stage cone.

Kontakt Hydex vedrørende MOOG PCME serie patronventiler

Type       Proportional throttle cartridge valve
Design Pilot operated seat type
Size NG16-NG50
Mounting type Manifold mounting
Cavity ISO 7368
Max operating pressure 350 bar
Flow 200-1800 l/min @ Δp 10 bar
Flow direction B → A
Hydraulic fluid
Viscosity range 2,8...380 mm²/s  (cSt)
Temperature -25°C to +80°C
Cleanliness class (recommended) ISO 4406 (C) class 20/18/15
Typical applications Metal Forming and Presses
Plastic Injection Molding
Steel Production Machinery
Mobile Applications
Marine / Offshore
Die Casting
For mer informasjon Klikk her ---  Katalog
