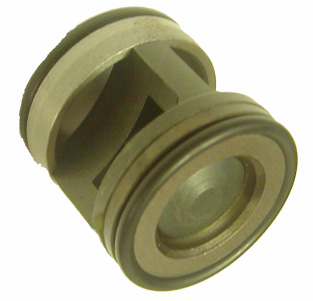

Bucher Hydraulics RKVC... serie size 04...40 tilbakeslagsventil

Bucher Hydraulics tilbakeslagsventiler
  • High pressure rating
  • Virtually zero leakage
  • Compact construction
  • Various opening pressures
  • Can be used as right-angle valve
  • Interchangeable with RVC
  • No-flow direction can be reversed
  • In conjunction with an ESH threaded mounting sleeve, can be used as a screw-in valve
        Bucher Hydraulics RKVC... serie Size 04...40 tilbakeslagsventil
Kontakt Hydex vedrørende Bucher Hydraulics RKVC... serie tilbakeslagsventil

Type        Check Valves, Size 04 ... 40
Designation Check valve / non-return valve
Design Spherical poppet design
Mounting method Push-in cartridge
Size Nominal 04...40 mm
Cavity type REG-01
Max operating pressure 350 bar (for 500 bar, contact Bucher Hydraulics)
Max flow rate 360 l/min
No-flow direction B → A (see symbol)
Hydraulic fluid HL and HLP hydraulic oils to DIN 51 524
Hydraulic fluid
temperature range
- 30°C ... + 80 °C
Viscosity range 10...500 mm²/s (cSt)
Minimum fluid cleanliness 18/14 to ISO 4406 / CETOP RP70H 8 ... 9 to NAS 1638
For mer informasjon Klikk her --- Datablad --- Oversikt

Kontakt Hydex vedrørende Bucher Hydraulics RKVC... serie tilbakeslagsventil
