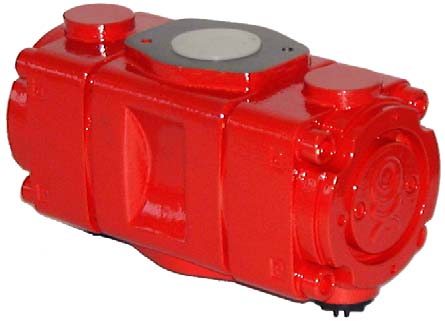

Bucher Hydraulics QXT... serie volumstrømsdeler

Bucher Hydraulics volumstrømsventiler
  • Extremely high division accuracy
  • Exceptionally quiet operation
  • Negligible pressure pulsationsA very wide range of division ratios is available
  • The inlet flow can be divided into as many as four portions
  • High efficiency
  • Long service life
  • Also suitable for special fluids
        Bucher Hydraulics QXT volumstrømsdeler
Kontakt Hydex vedrørende Bucher Hydraulics QXT... serie volumstrømsdeler

Type        Internal Gear Flow Divider
Installation attitude Unrestricted
Outlet displacement 5-250 cm³/U
Cont./ Interm. pressure 250 / 320 bar
Speed 400 - 6300 rpm
Divided flows 2, 3 or 4
Hydraulic fluid temperature HLP mineral oil − 80°C max
HFB, HFD and HFC − 50°C max
Viscosity range 10 - 300 mm²/s
Division accuracy >98%
Min. fluid cleanliness level ISO 4406 class 20/18/15, or NAS 1638 class 9
Nitrile seals NBR
For mer informasjon Klikk her --- Datablad --- Oversikt

Kontakt Hydex vedrørende Bucher Hydraulics QXT... serie volumstrømsdeler
