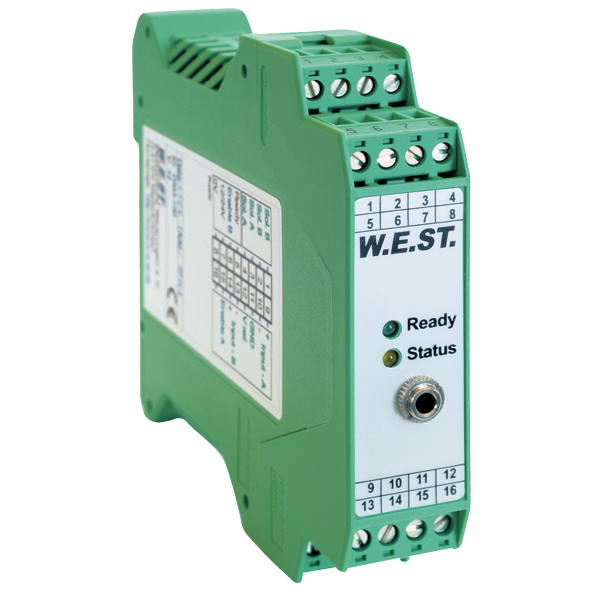

W.E.ST. SCU-129 kontroller for posisjonering

W.E.ST. kontrollere for posisjonering
  • Analogue speed inputs
  • Analogue feedback position sensor
  • Parameterizied in mm and mm/s
  • Internal profile definition by acceleration, velocity and deceleration
  • NC profile generator for constant speed
  • Usable with overlapped proportional valves and with zero lapped control valves
  • Optional: Integrated power output stage (P Version)
  • Optional: SSI Sensor interface
  • Fault diagnosis and extended function checking
  • Simplified parametrisation with WPC-300 software version 3.2
  • Robust and simple to adjust

Kontakt Hydex vedrørende W.E.ST. SCU-129 kontroller for posisjonering

Type      Speed control unit for cylinder drives
Use Controlling hydraulic positioning drives in closed loop speed control mode
Power supply 12...30 VDC (incl ripple)
Current consumption <100 mA
External fuse 1 A (medium lag)
Interface RS 232C, 9600…57600 Baud, 1 stop bit, No parity, Echo Mode
Housing Snap-On Module EN 50022
Polyamide PA 6.6
Combustibility class V0 (UL94)
Protection class IP20
Temperature range -20°C to +60°C
Humidity <90% (not condensing)
Connectors RS232: 3,5mm JISC-6560
4 x 4pol. screw terminals
PE: direct via DIN rail
For mer informasjon Klikk her  --- Datablad
