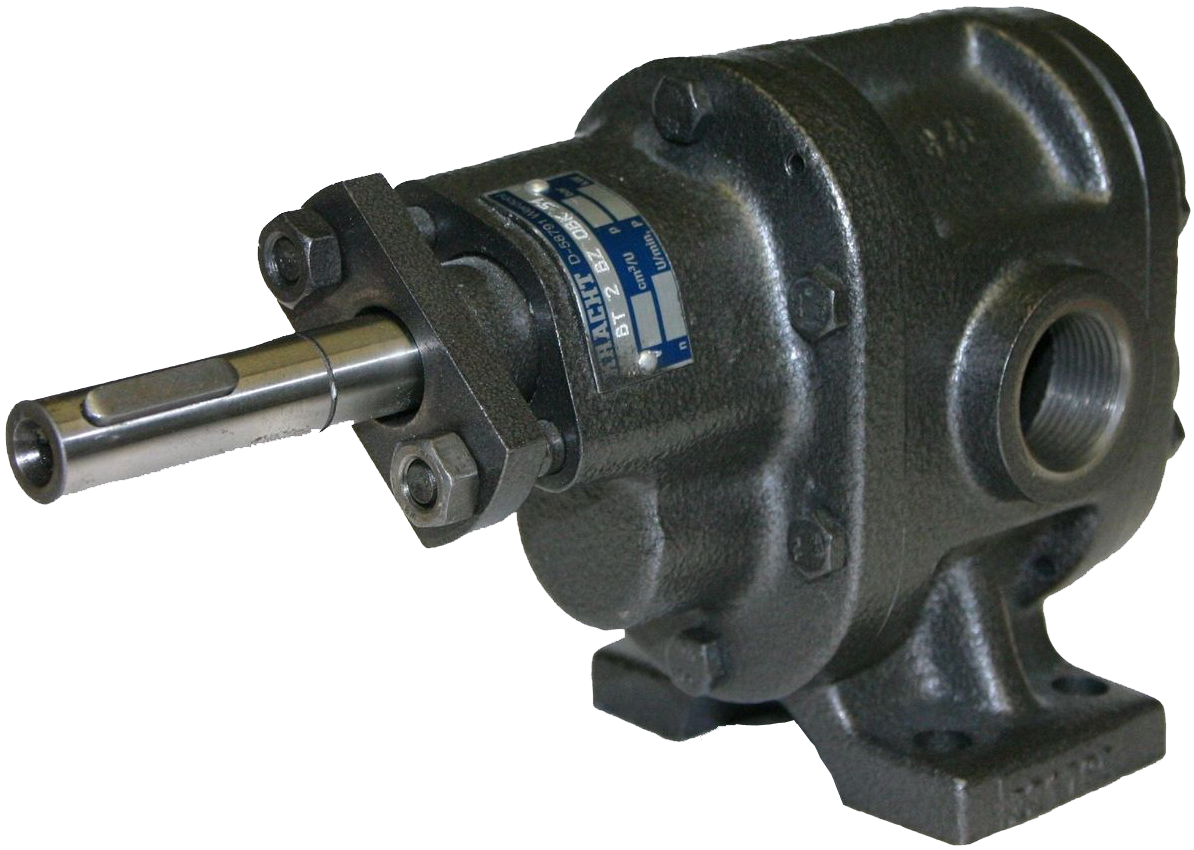

Kracht BT serie hydrauliske pumper - Tannhjul - Utvendig fortanning

Kracht hydrauliske pumper
  • Low speed gear pumps for transfering medium and high viscosity fluids, provided they have certain minimum amount of lubricating property, do not contain any solids and are chemically compatable with the materials of construction
  • The standard material of construction for housing, bearing cover and stuffing box cover is grey cast iron
  • The shafts and gears are manufactured from case hardening steel, hardened and ground.
  • The shafts are carried in plain bearings manufactured in bronze, with an option of sintered iron
  • The rotary shaft seal is a packed gland consisting of PTFE fillied aramid yarn, and the static sealing between mating parts is by means of either, liquid sealant or gaskets
  • All sealing materials are asbestos free


Kontakt Hydex vedrørende Kracht BT serie hydrauliske pumper

Type      Gear Pump
Mounting method Foot mounting, Whitworth-Pipe thread
Max operating pressure 8 bar
Effective displacement 4-494 cm³/rev
Speed max 750 rpm
Temperature range −10 °C ... + 220 °C
Viscosity range 76...30 000 mm²/s, viscosities other than within this range on request
Fluids Lubricating-, Cutting oils - Soluble-, Steel hardening-, Rolling-, Drawing oils - Diesel oils - Fuel oil S - Engine oils - Waste oils - Bitumen - Paints - Greases - Synthetic resin varnishes - Nitrocellulose lacquers - Adhesives, Plastics - Binding agents - Resins - Glue, Glue liquors - Molasses - Waxes - Cellulose - etc.
For mer informasjon Klikk her  --- Datablad

Kontakt Hydex vedrørende Kracht BT serie hydrauliske pumper
