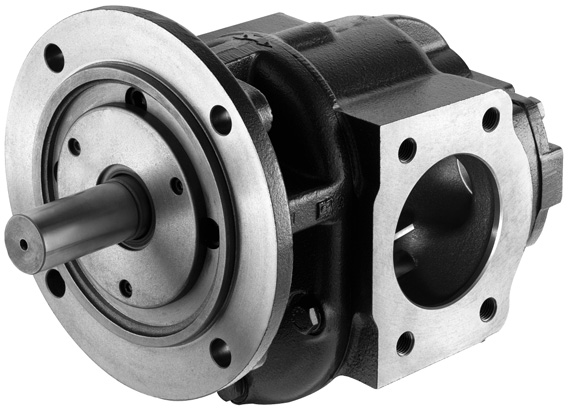

Kracht KF 3/100...KF 6/730 serie transportpumper/smøreoljepumper - Tannhjul - Utvendig fortanning

Kracht transportpumper
  • For pumping a wide variety of fluids
  • Distinguished especially by their wide range of variants which are assembled as required on the modular principle and also permit subsequent upgrade
  • Also suitable for media with low lubricating properties
  • The standard housing sections are of grey cast iron
  • The gear units are manufactured from high-strength case-hardening steel, hardened and mounted in special multi-compound plain bearing bushes
  • The standard drive shaft is sealed by rotary shaft lip-type seal
  • All pump sizes incorporate helical tooth system, which combined with special gear geometry, results in extremely low noise levels and reduced pressure pulsation
        Kracht KF 3/100...KF 6/730 series transportpumper/smøreoljepumper
Kontakt Hydex vedrørende Kracht KF 3/100...KF 6/730 serie transportpumper/smøreoljepumper

Type      Transfer Gear Pump
Mounting method Flange- and angle foot type
Max operating pressure 25 bar
Effective displacement 100-730 cm³/rev
Max speed 2000 1/min
Temperature range −20 °C ... +60 °C
Viscosity range 12...15 000 mm²/s
Fluids Adhesives, Antifreeze - Bore oils - Cutting oils - Diesel oils, Drawing compound - Emulsions - Fuel oils, L, EL, H - Gear oils, Grease - Hardening oils, Heat transfer media, - Heavy oils, Hydraulic fluids - Isocyanate - Lubricating oils, Lacquers - Motor oils - Paint, Paraffins, Plastics, Polyols - Printing inks, Processing oils - Resins, Rolling oils - Waste oils, Waxes
For mer informasjon Datablad  --- Oversikt

Kontakt Hydex vedrørende Kracht KF 3/100...KF 6/730 serie transportpumper/smøreoljepumper
