PEES Components AN532 servo amplifier

PEES Components styringsenheter

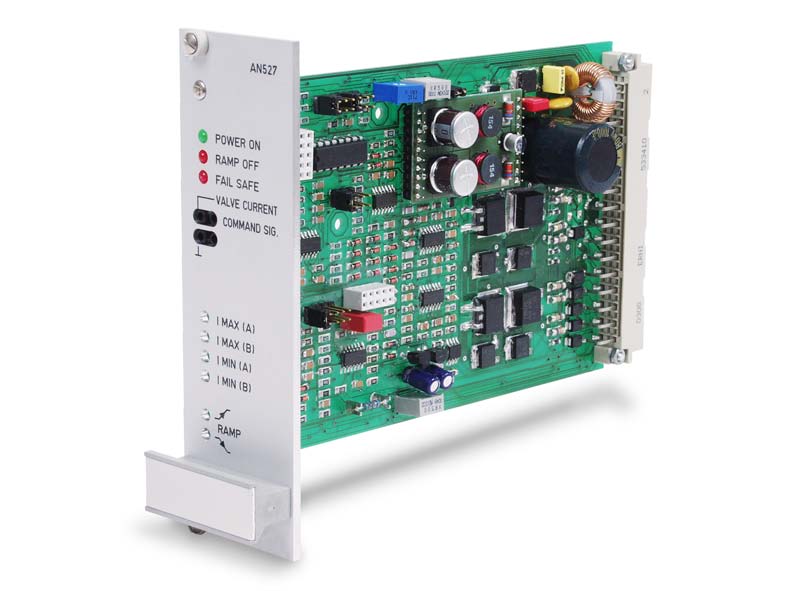

  • The AN532 servo amplifier has been designed to control single-magnet proportional valves and throttle valves
  • Protection against wrong polarity
  • short-circuit proof
  • External ramp switch-off
  • Wide range of ramp adjustment
  • External enable (normally closed circuit)
  • Measurement sockets for setpoint voltage and magnet coil current
  • The negative of the power supply is at the same potential as the input zero voltages and the zero potential of the reference voltages. This allows several servo amplifiers to be operated from a common power supply
  • PWM output stages with high dynamic response and high carrier frequency
  • 5 different setpoint inputs for the most common input voltages and currents giving great flexibility of input circuit
  • LED indicators for 'Power on', 'Ramp off' and 'Fail safe'
  • Potentiometers for ramps, zero overlap and amplification adjustable on the front plate

Kontakt Hydex vedrørende PEES Components AN532 servo amplifier

Type      Servo amplifier
Use Controlling single-magnet proportional valves and throttle valves.
Connector 48 pole connector DIN 41612 F48
Supply voltage 24V DC (23…...32V DC)
Output current Imax = 2600 mA, 3 plug-selectable ranges: (0–800mA, 0–1600mA, 0–2600mA)
Inputs 1x 4–20mA, 100Ω
1x 0–20mA, 100Ω
1x 0–5V, 50kΩ
1x 0–10V, 100kΩ
1x user selectable R1000, 10kΩ/V
Dither Factory setting approx. 140Hz
Amplitude internally adjustable, approx. 0–20% of rated current
Measurement sockets (2mm) VALVE CURRENTvalve current 1V = 1A, ±5%,
COMMAND SIG.setpoint 0–10V
