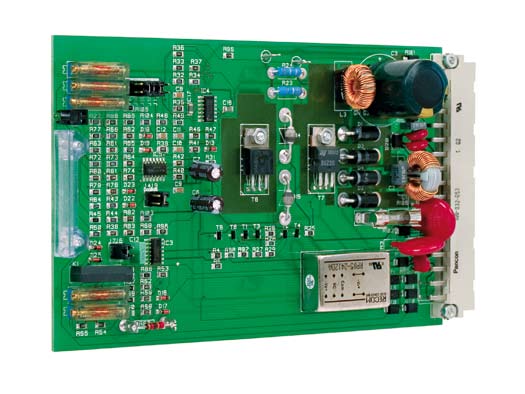

PEES Components AN535 servo amplifier

PEES Components styringsenheter
  • The AN535 servo amplifier has been designed as a low-cost unit for single-magnet proportional valves
  • Applications include the control of proportional pressure control and throttle-valves
  • Provided with various setpoint inputs 4-20mA, 0-20mA, 0-5V, 0-10V, user selectable, 10kΩ/V
  • Ramp gradients can be set separately for rise and fall
  • Imax, Imin and the dither amplitude can be set via multi-turn resistors
  • As an option, the module can be supplied with an external input for ramp switch-off

Kontakt Hydex vedrørende PEES Components AN535 servo amplifier

Type      Servo amplifier
Use Controlling single-magnet proportional valves and throttle valves.
Connector 32 pin connector DIN 41612 D32
Supply voltage 24V DC (18–36V DC)
15–26V AC
Output current Imax = 2A
Inputs 1x 4–20mA, 100Ω
1x 0–20mA, 100Ω
1x 0–5V, 50kΩ
1x 0–10V, 100kΩ
1x user selectable 10kΩ /V MAX
Dither 2 jumper-selectable ranges
approx. 140Hz (plug in position J5)
approx. 45Hz (plug in position J1)
Amplitude can be set using the
DITHER potentiometer, approx.
0–10% of rated current
Multi-turn resistors Imax
Imin approx. 0–25% of Imax
Ramp up 2–140V/s (–20%)
(70ms–5s)
Ramp down 2–140V/s (–20%)
(70ms5s)
For mer informasjon Klikk her --- Datablad
