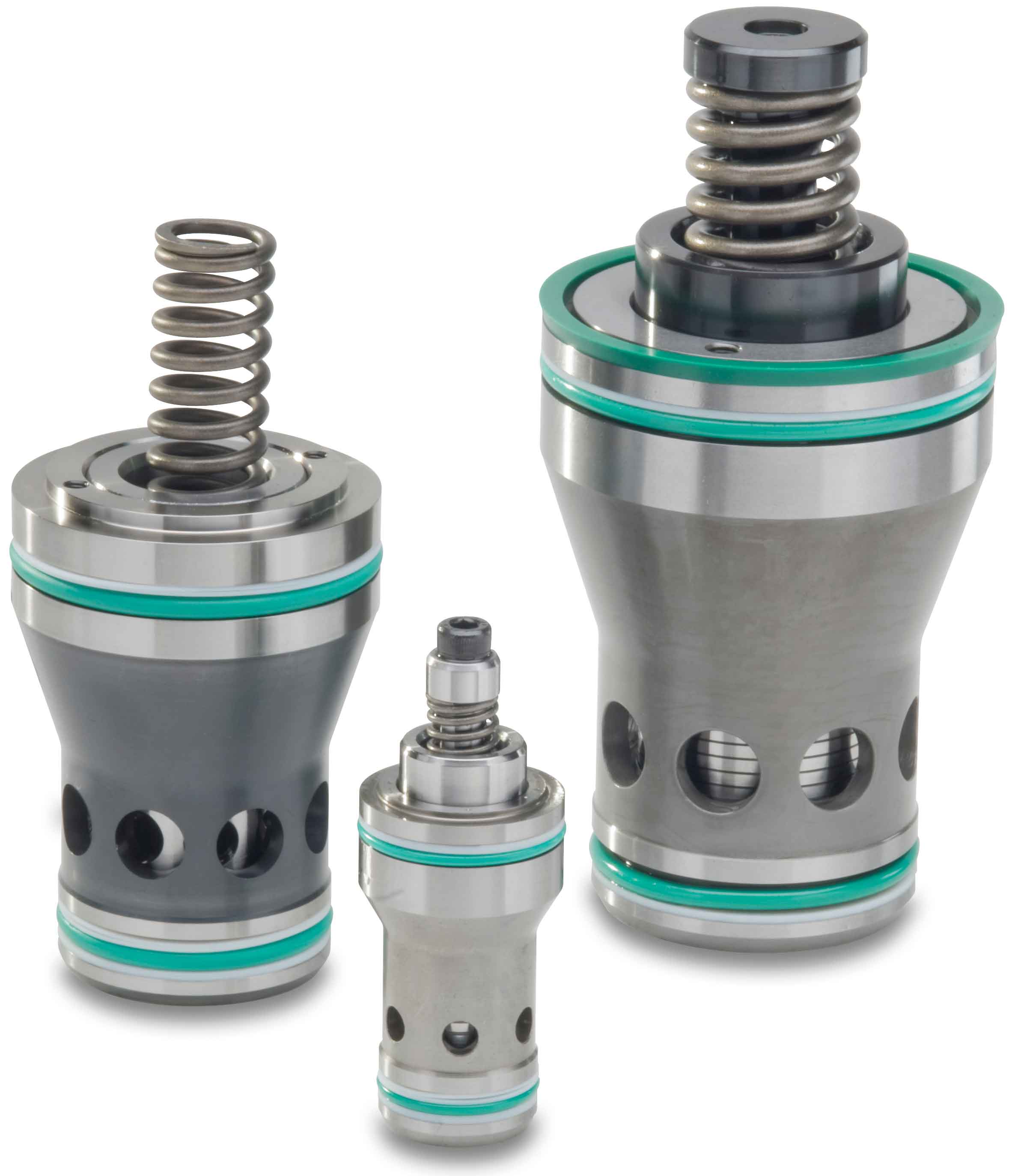

MOOG CKE serie patronventiler - 2-veis - Slip-in - Sleide

MOOG patron- og servo patronventiler
  • 2-way Slip-in Cartridge Valves - Spool Type
  • Equipped with a spool instead of a poppet
  • Can be used for pressure reducing functions or in combination with a throttle valve as pressure compensators
  • Available as normally closed or normally open versions


Kontakt Hydex vedrørende MOOG CKE serie patronventiler

Type     2-way Slip-in Cartridge Valves
Design Spool type
Size NB16-NB50
Mounting type Manifold mounting
Cavity ISO 7368
Max operating pressure 350 bar
Flow 130-1150 l/min
Flow direction B → A
Hydraulic fluid M-CKE, hydraulic fluids on mineral oil basis,
other hydraulic fluids on request
Recommended viscosity range 2,8...380 mm²/s (cSt)
Hydraulic fluid temperature -10°C to +80°C
Cleanliness class (recommended) ISO 4406 (C) class 20/18/15
Typical applications Metal Forming and Presses
Plastic Injection Molding
Steel Production Machinery
Mobile Applications
Marine / Offshore
For mer informasjon Klikk her ---  Katalog

Kontakt Hydex vedrørende MOOG CKE serie patronventiler
