Barksdale 20597 modell regulator - Dreiesleide

Barksdale regulatorer
  • Original Shear-Seal® technology
  • API compliant for sensitivity
  • High flow capacity
  • Large pressure range
  • Tolerates contaminated media
  • Fail-safe motor control options
  • Self venting
  • Surge dampening

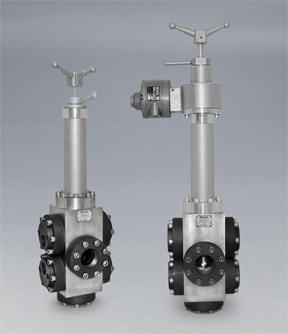

Barksdale 20597 modell regulatorer - Dreiesleide
Kontakt Hydex vedrørende Barksdale 20597 modell regulator

Type    Hydraulic Pressure Regulator
Design 1-½” Heavy duty hydraulic regulator
Supply/inlet  pressure 345 bar
Regulated pressure range 110...228 bar
Operating temperature -40°C to +121°C
Flow rate 120 GPM
Inlet port 1 1” NPT Standard, SAE Optional
Inlet port 2 1” NPT Standard, SAE Optional
Outlet port 1-1/2” NPT Standard, SAE Optional
Vent port 1” NPT Standard, SAE Optional
For mer informasjon Klikk her   --- Datablad  --- Katalog   --- Oversikt

Kontakt Hydex vedrørende Barksdale 20597 modell regulator



Relaterte produkter

   Barksdale 20313 modell regulator - Dreiesleide          Barsdale 20415 modell regulator - Dreiesleide

   Barksdale 20495 modell regulatorer - Dreiesleide    Barksdale 20517 modell regulator - Dreiesleide


Oversikt Barksdale dreiesleide regulatorer
