PEES Components AN206 PID controller

PEES Components styringsenheter

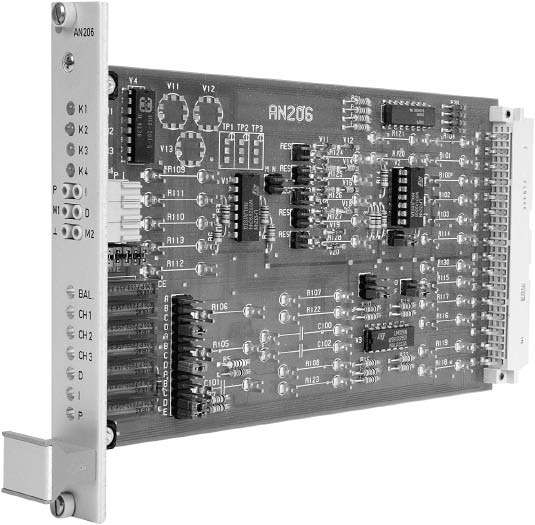

  • The AN206 controller module has been developed for use in plant engineering
  • Combination with other modular units permits assembly of any controller arrangements required
  • The P, I and D components can be adjusted internally or externally, via potentiometers
  • External parameter adjustment is used predominantly in test and inspection system engineering.
  • The P, I and D components can be adjusted internally or externally, via potentiometers
  • External parameter adjustment is used predominantly in test and inspection system engineering

Kontakt Hydex vedrørende PEES Components AN206 PID controller

Type     PID controller
Use In plant engineering
Connector 32 pole male connector strip as per DIN 41612 D32
Supply voltage ±15V DC
Output current I max. 800 mA, 1600 mA, 2500 mA, depending on card type with current limitation
Short-circuit protection For the magnet and the reference voltage
Input stage Input resistors wired 10k½/V
c6/c12: fixed inputs (R100, R101)
a30/a32: adjustable inputs (R102, R103)
Controller R105, R106, R111
Control inputs K1 Pin a4 Controller enable
K2 Pin c4 Enable I component
K3 Pin c2 Enable pilot control
K4 Pin c10 Input link for pilot control
Measuring sockets M1: Difference generator output ±10V
M2: Controller output ±10V
For mer informasjon Klikk her --- Datablad
